Product Summary
The HFBR-1528Z consists of a fiber-optic transmitter and receiver operating at a 600 nm wavelength (red). The HFBR-1528Z transmitter is an LED in a low cost plastic housing designed to efficiently couple power into 200 μm diameter HCS and 1 mm diameter POF. The HFBR-1528Z receiver incorporates a PIN detector and digital output IC compatible with CMOS and TTL logic families. The HFBR-1528Z links operate from DC to 10 MBd at distances up to 50 meters with 1 mm POF and up to 500 meters with 200 μm HCS.
Parametrics
HFBR-1528Z absolute maximum ratings: (1)Wavelength: 600nm; (2)Voltage Forward (Vf), Typ: 2.02V; (3)Current, DC Forward (If): 1A; (4)Voltage, DC Reverse (Vr) (Max): 5V; (5)Connector Type: Versatile Link.
Features
HFBR-1528Z features: (1)RoHS-compliant; (2)Data transmission at signal rates of dc to 10 MBd; (3)Up to 50 meters distances with 1 mm Plastic Optical Fiber (POF); (4)Up to 500 meters distances with 200 μm Hard Clad Silica (HCS); (5)Link distances specified for variations in temperature, power supply, and fiber attenuation; (6)DC coupled receiver with CMOS/TTL output for easy designs: No data encoding or digitizing circuitry required; (7)Pulse width distortion (PWD) controlled to limit distortion from low duty cycle or burst mode data; (8)High noise immunity.

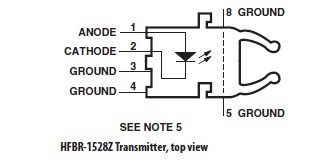

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HFBR-1528Z |
Avago Technologies |
Fiber Optic Transmitters, Receivers, Transceivers V-Link Horiz 10MBd T x RoHS |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
HFBR-0310 |
Avago Technologies |
Fiber Optic Development Tools 155 MBd Txcvr Evaluation Kit |
Data Sheet |
Negotiable |
|
||||||||||||
|
HFBR-0310Z |
Avago Technologies |
Fiber Optic Development Tools 125MBd 1300nm Evaluation Kit |
Data Sheet |
|
|
||||||||||||
|
HFBR-0319 |
Avago Technologies |
Fiber Optic Development Tools 1X9 Fiber Optic Evaluation Kit |
Data Sheet |
|
|
||||||||||||
|
HFBR-0400 |
Avago Technologies |
Fiber Optic Development Tools SMA Fiber Optic Evaluation Kit |
Data Sheet |
Negotiable |
|
||||||||||||
|
HFBR-0410 |
Avago Technologies |
Fiber Optic Development Tools ST Fiber Optic Evaluation Kit |
Data Sheet |
Negotiable |
|
||||||||||||
|
HFBR-0410Z |
Avago Technologies |
Fiber Optic Development Tools DC-5MBd 820nm Evaluation Kit |
Data Sheet |
|
|
||||||||||||
