Product Summary

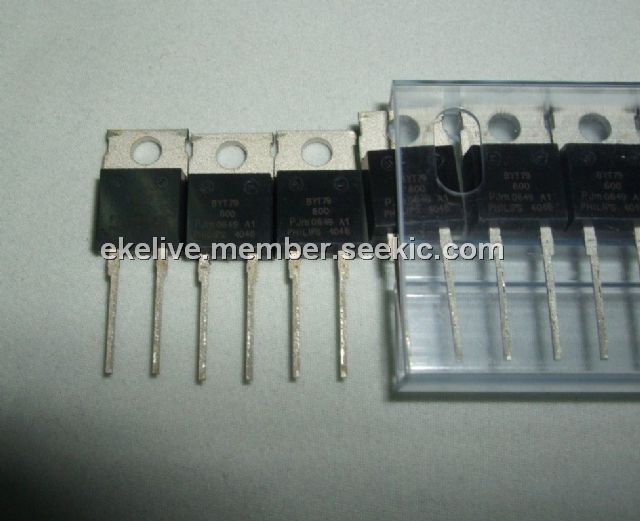

The BYT79-600 is an Ultrafast, epitaxial rectifier diode in a SOD59 (TO-220AC) plastic package. The applications of it is Output rectifiers in high frequency switched-mode power supplies, Discontinuous Current Mode (DCM), Power Factor Correction (PFC).

Parametrics

BYT79-600 absolute maximum ratings: (1)repetitive peak reverse voltage:600V; (2)crest working reverse voltage:600V; (3)reverse voltage:600V; (4)average forward current:15A; (5)repetitive peak forward current:30A; (6)non-repetitive peak forward current:130A or 143A; (7)storage temperature:-40℃ to +150℃; (8)junction temperature:150℃.

Features

BYT79-600 features: (1)Fast switching; (2)Low thermal resistance; (3)Soft recovery characteristic ; (4)Low forward voltage drop; (5)Low switching loss ; (6)High thermal cycling performance.

Diagrams

BYT79-600 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BYT79-600
BYT79-600

Other


Data Sheet

Negotiable
BYT79-600,127
BYT79-600,127

NXP Semiconductors

Diodes (General Purpose, Power, Switching) Diode Ult Fast Recov Rectifier 600V 15A

Data Sheet

0-1: $0.73
1-25: $0.65
25-100: $0.57
100-250: $0.50
