Product Summary

The AD7501JNZ is a monolithic CMOS, 8-channel analog multiplexer which switches one of eight inputs to a common output, depending on the state of three binary address lines and an enable input. All digital inputs are TTL/DTL and CMOS logic compatible. Depending on the state of two binary address inputs and an enable, AD7501JNZ switches two output buses to two of eight inputs.

Parametrics

AD7501JNZ absolute maximum ratings: (1)VDD to GND: +17 V; (2)VSS to GND: –17 V; (3)V Between Any Switch Terminals1: 25 V; (4)Digital Input Voltage Range: VDD to GND; (5)Overvoltage at VOUT (VS): VSS, VDD; (6)Switch Current (IS, Continuous One Channel): 35 mA; (7)Switch Current (IS, Surge One Channel) 1 ms Duration, 10% Duty Cycle: 50 mA; (8)Power Dissipation (Any Package)Up to +75℃: 450 mW; (9)Derates above +75℃ by 6 mW/℃; (10)Operating Temperature, Commercial (KN Version): 0℃ to +70℃; (11)Industrial (KQ Version): –25℃ to +85℃; (12)Extended (SQ, SE Versions): –55℃ to +125℃; (13)Storage Temperature: –65℃ to +150℃; (14)Lead Temperature (Soldering, 10 sec): +300℃.

Features

AD7501JNZ features: (1)DTL/TTL/CMOS Direct Interface; (2)Power Dissipation: 30 μW; (3)RON: 170Ω; (4)Standard 16-Lead DlPs and 20-Terminal Surface Mount Packages.

Diagrams

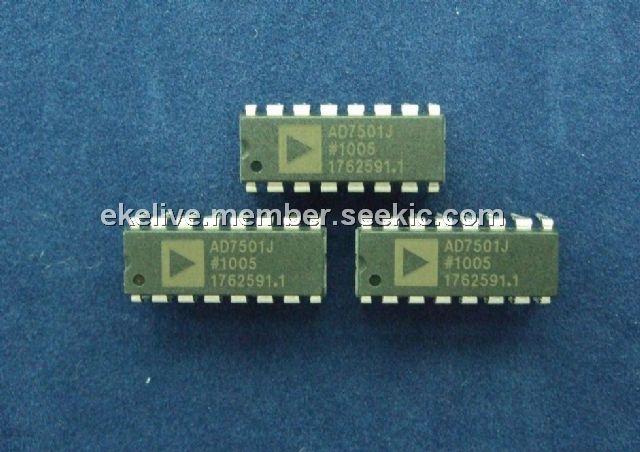

AD7501JNZ diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD7501JNZ
AD7501JNZ

IC MULTIPLEXER 8X1 16DIP
Data Sheet
0-1: $8.56
1-25: $7.19
25-100: $6.61
100-250: $6.03
250-500: $5.64
500-1000: $5.18
