Product Summary

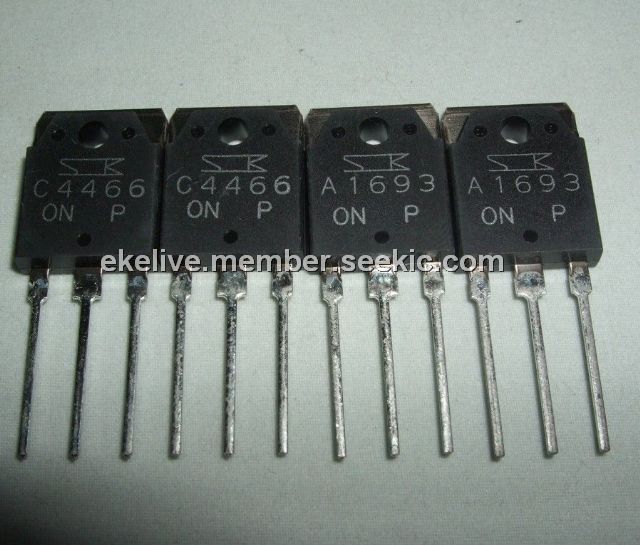

The 2SC4466 is a Silicon NPN Triple Diffused Planar Transistor. It is used in Audio and General Purpose.
Parametrics
2SC4466 absolute maximum ratings: (1)VCBO: 120V; (2)VCEO: 80V; (3)VEBO: 6V; (4)IC: 6A; (5)IB: 3A; (6)PC: 60(TC=25℃)W; (7)Tj: 150℃; (8)Tstg: -55 to +150℃.
Features
2SC4466 electrical characteristics: (1)ICBO: 10max μA; (2)IEBO: 10max μA; (3)V(BR)CEO: 80min V; (4)hFE: 50min; (5)VCE(sat): 1.5max V; (6)fT: 20typ MHz; (7)COB: 110typ pF.

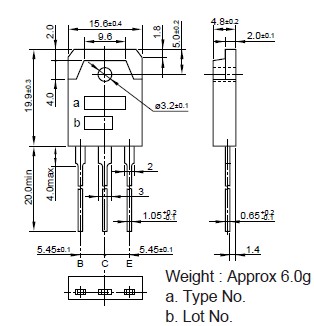

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC4466 |
Other |
|
Data Sheet |
Negotiable |
|
||||
