Product Summary
The 2SA1492 is a Silicon PNP Epitaxial Planar Transistor. It is used in Audio and General Purpose.
Parametrics
2SA1492 absolute maximum ratings: (1)VCBO: -180V; (2)VCEO: -180V; (3)VEBO: -6V; (4)IC: -15A; (5)IB: -4A; (6)PC: 130(TC=25℃)W; (7)Tj: 150℃; (8)Tstg: -55 to +150℃.
Features
2SA1492 electrical characteristics: (1)ICBO: -100max μA; (2)IEBO: -100max μA; (3)V(BR)CEO: -180min V; (4)hFE: 50min; (5)VCE(sat): -2.0max V; (6)fT: 20typ MHz; (7)COB: 500typ pF.

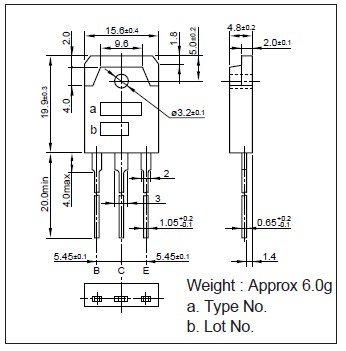

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SA1492 |
Other |
|
Data Sheet |
Negotiable |
|
||||
