Product Summary

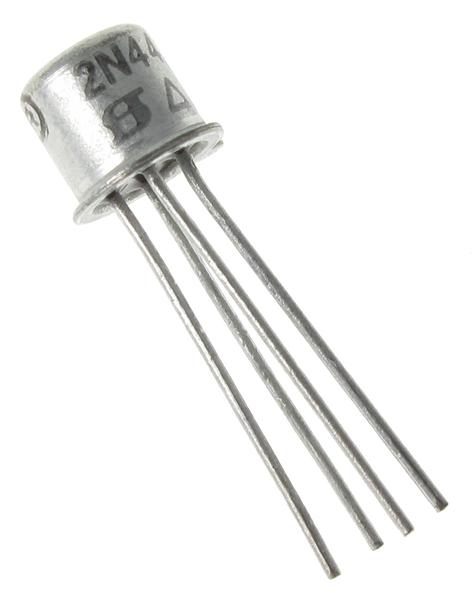

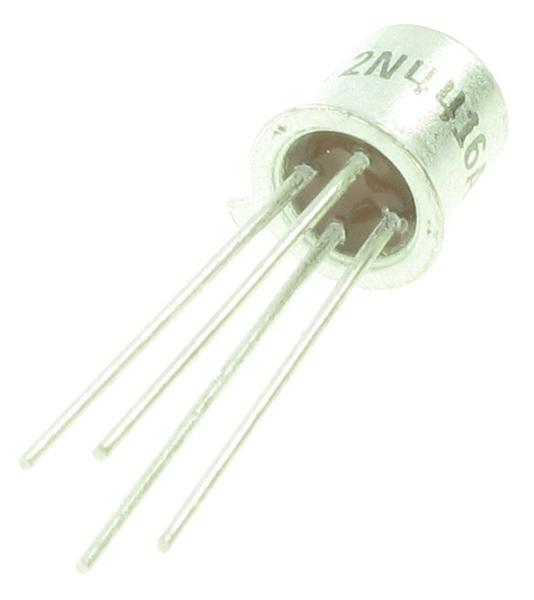

The 2N4416A n-channel JFET is designed to provide high-performance amplification at high frequencies. The TO-206AF (TO-72)hermetically-sealed package is available with full military processing (see Military Information.) The TO-236 (SOT-23) package provides a low-cost option and is available with tape-and-reel options (see Packaging Information). For similar products in the TO-226AA (TO-92) package, see the J304/305 data sheet.

Parametrics

2N4416A absolute maximum ratings: (1)Gate-Drain, Gate-Source Voltage : (2N4416A): 35 V; (2)Gate Current: 10 mA; (3)Lead Temperature: 300 ℃; (4)Storage Temperature : (2N Prefix): -65 to 200 ℃; (SST Prefix): -65 to 150C; (5)Operating Junction Temperature: -55 to 150 C; (6)Power Dissipation : (2N Prefix): 300 mW; (SST Prefix)b: 350 mW.

Features

2N4416A features: (1)Excellent High-Frequency Gain: 2N4416/A, Gps 13 dB (typ) @ 400 MHz; (2)Very Low Noise: 3 dB (typ) @ 400 MHz; (3)Very Low Distortion; (4)High AC/DC Switch Off-Isolation.

Diagrams

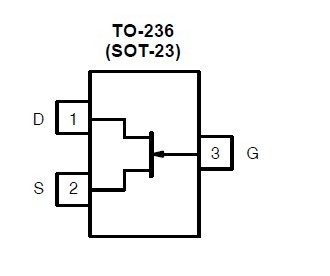

2N4416A Top View

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
2N4416A
2N4416A
Central Semiconductor
JFET N-Chan JFET
Data Sheet
0-1: $2.17
1-25: $2.03
25-100: $1.92
100-250: $1.83
2N4416A-E3
2N4416A-E3
Vishay/Siliconix
JFET 35V 5mA
Data Sheet
0-1: $2.39
1-25: $2.24
25-50: $2.09
50-100: $1.97
