Product Summary
The NUD4011DR2G is a low current LED driver which is designed to replace discrete solutions for driving LEDs in AC/DC high voltage applications (up to 200 V). An external resistor allows the circuit designer to set the drive current for different LED arrays. This discrete integration technology eliminates individual components by combining them into a single package, which results in a significant reduction of both system cost and board space. The NUD4011DR2G is a small surface mount package (SO-8).
Parametrics
NUD4011DR2G absolute maximum ratings: (1)Input Voltage Vin: 200 V; (2)Output Current(For Vdrop ≤ 16 V): 70 mA; (3)Output Voltage: 198 V; (4)Human Body Model (HBM) ESD: 500 V.
Features
NUD4011DR2G features: (1)Supplies Constant LED Current for Varying Input Voltages; (2)External Resistor Allows Designer to Set Current – up to 70 mA; (3)Offered in Surface Mount Package Technology (SO-8); (4)Pb-Free Package is Available.

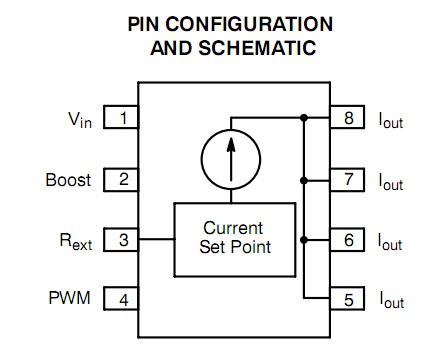

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NUD4011DR2G |
ON Semiconductor |
LED Lighting Drivers MI LO CUR LED DRVR |
Data Sheet |
|
|
|||||||||||||
