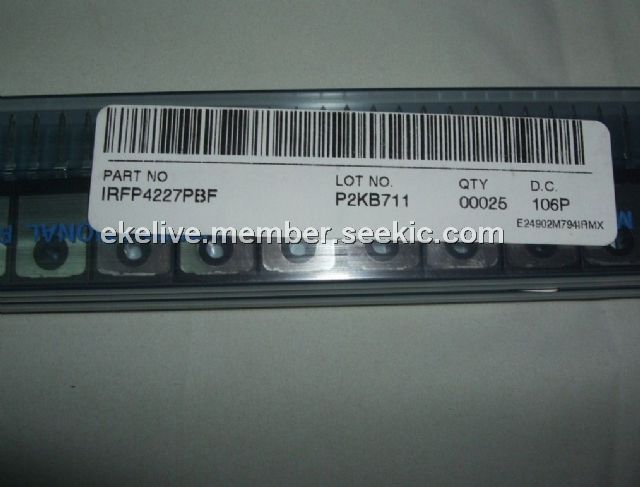

IRFP4227PBF

HEXFET Power MOSFET, 200V, 65A, TO-247AC, 21mΩ, 330 W, IRFP4227PBF

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~3.00

PartNumber:: IRFP4227PBF

Brand:: International Rectifier - IR | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. James Blunt's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-26

From Other Seller

Part Number:IRFP4227PBF
US $0.10 - 3.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRFP4227PBF is a HEXFET Power MOSFET. It is specifically designed for Sustain; energy recovery and pass switch applications in plasma display panels. The IRFP4227PBF utilizes the latest processing techniques to achieve low on-resistance per silicon area and low EPULSE rating. Additional features of the IRFP4227PBF are 175℃ operating junction temeprature and high repetitive peak current capability. These features combine to make the IRFP4227PBF a highly efficient, robust and reliable device for PDP driving applications.

Parametrics

IRFP4227PBF absolute maximum ratings: (1)VGS, Gate-to-Source Voltage: ±30 V; (2)ID @ TC = 25℃, Continuous Drain Current, VGS @ 10V: 65 A; (3)ID @ TC = 100℃, Continuous Drain Current, VGS @ 10V: 46A; (4)IDM, Pulsed Drain Current: 260A; (5)IRP @ TC = 100℃, Repetitive Peak Current: 130A; (6)PD @TC = 25℃, Power Dissipation: 330 W; (7)PD @TC = 100℃, Power Dissipation: 190W; (8)Linear Derating Factor: 2.2 W/℃; (9)TJ, TSTG, Operating Junction and Storage Temperature Range: -40 to 175℃; (10)Soldering Temperature for 10 seconds: 300℃; (11)Mounting Torque, 6-32 or M3 Screw: 10N.

Features

IRFP4227PBF features: (1)Advanced Process Technology; (2)Key Parameters Optimized for PDP Sustain, Energy Recovery and Pass Switch Applications; (3)Low EPULSE Rating to Reduce Power Dissipation in PDP Sustain, Energy Recovery and Pass Switch Applications; (4)Low QG for Fast Response; (5)High Repetitive Peak Current Capability for Reliable Operation; (6)Short Fall & Rise Times for Fast Switching; (7)175℃ Operating Junction Temperature for Improved Ruggedness; (8)Repetitive Avalanche Capability for Robustness and Reliability.
