Product Summary

The PESD15VL2BT is a low capacitance double bidirectional ElectroStatic Discharge (ESD) protection diode in a SOT23 small Surface Mounted Device (SMD) plastic package, which is designed to protect two signal lines from the damage caused by ESD and other transients. The applications of the PESD15VL2BT include Computers and peripherals, Communication systems, Audio and video equipment n Portable electronics, Cellular handsets and accessories.

Parametrics

PESD15VL2BT absolute maximum ratings: (1)peak pulse power: 200 W; (2)peak pulse current: 5 A; (3)junction temperature: 150 ℃; (4)ambient temperature: -65 to +150 ℃; (5)storage temperature: -65 to +150 ℃.

Features

PESD15VL2BT features: (1)ESD protection of two lines; (2)Ultra low leakage current: IRM < 90 nA; (3)Max. peak pulse power: PPP = 350 W; (4)ESD protection up to 23 kV; (5)Low clamping voltage: VCL = 26 V; (6)IEC 61000-4-2, level 4 (ESD); (7)Small SMD plastic package; (8)IEC 61000-4-5 (surge); IPP = 15 A.

Diagrams

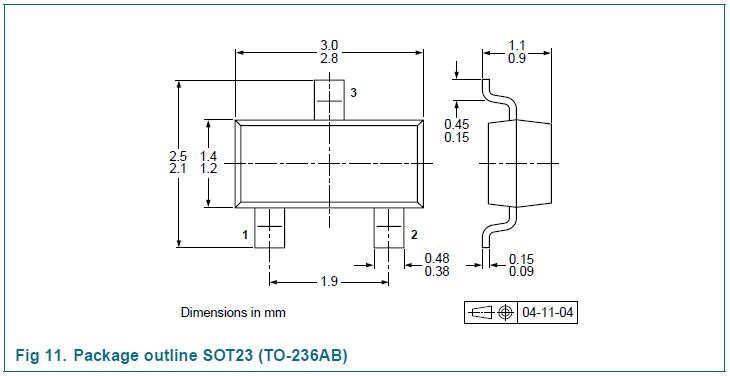

PESD15VL2BT Package outline diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PESD15VL2BT,215
PESD15VL2BT,215

NXP Semiconductors

TVS Diode Arrays 15V BIDIRECTION ESD DUAL

Data Sheet

0-1: $0.28
1-25: $0.20
25-100: $0.18
100-250: $0.15
